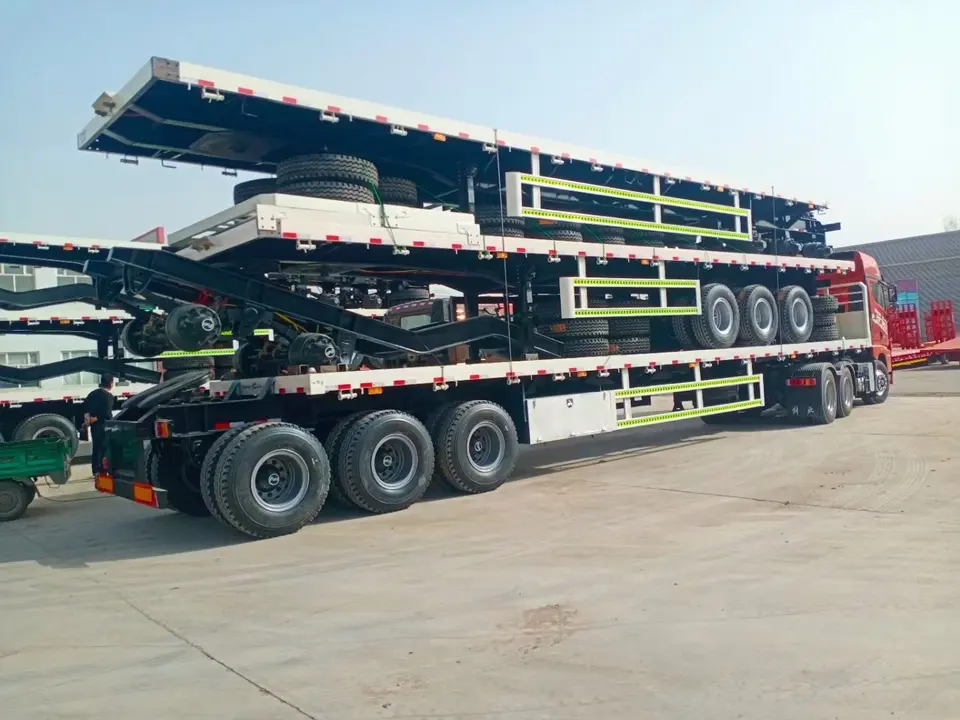

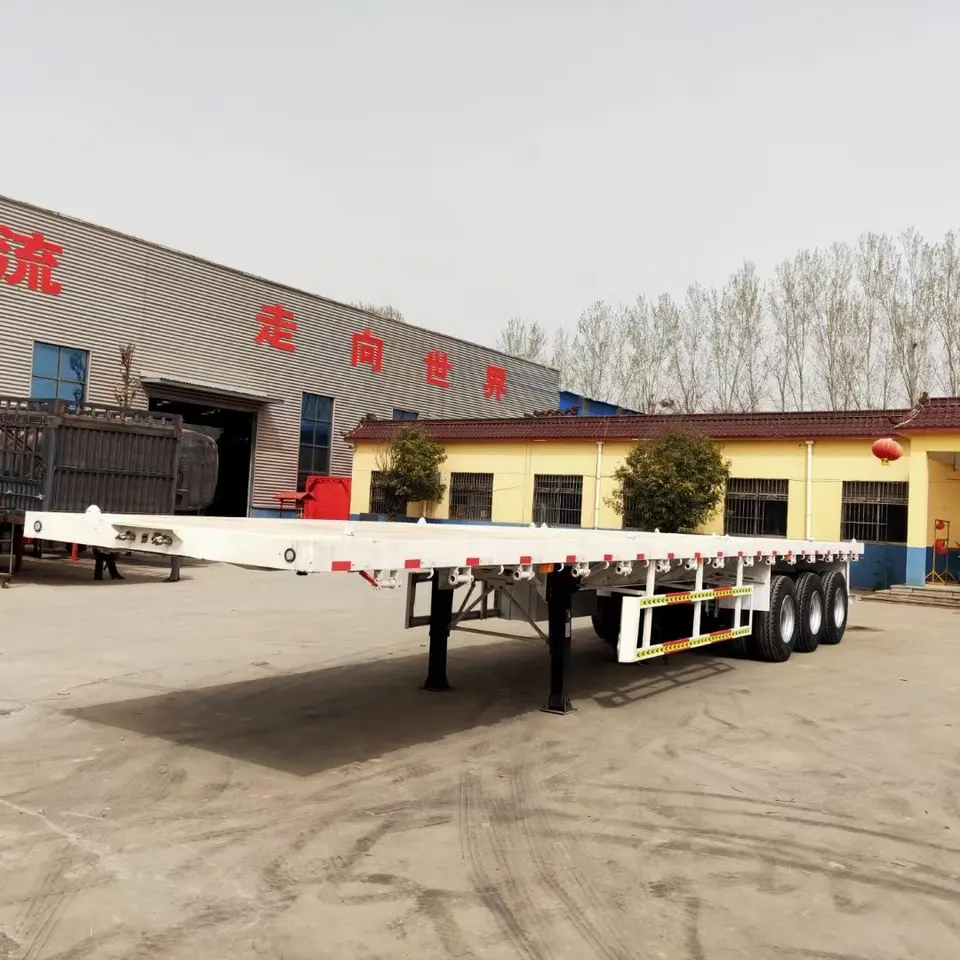

Our 40ft Flatbed Container Carrier Semi-Trailer is designed to be versatile and reliable, catering to a wide range of cargo hauling requirements.
- The flatbed design allows for transporting not only containers but also other oversized or irregularly shaped cargo, enhancing the versatility of the semi-trailer.
- With a sturdy build and reliable components, this semi-trailer can handle various loads, making it suitable for different industries and applications.
- Whether you’re in the shipping business, logistics, or cargo transportation, our container carrier semi-trailer offers the flexibility and dependability you need for successful cargo hauling.
| Name | flatbed semi trailer |
| Loading capacity | 30-60T |
| Tare Weight | 6.5-9T |
| Axle | 2 axles/ 3axles/4 axle, 13 T/16T/20T BPW / FUWA /Huajin brand |
| Rim | 8.00-20/8.5-20/8.8-20 China Brand |
| Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
| Suspension | Mechanical suspension(German Type or America Type) or Air suspension |
| Spring leaf | 90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional) |
| Wheel base(mm) | 6880+1310+1310. |
| Kingpin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
| The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
| Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
| Brake chamber | 6 double brake chamber |
| Landing gear | JOST/FUWA/Yahua brand 28T(two speed or single speed) |
| Twist Locks | Four, Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
| Platform plate | 3mm Checkered steel plate |
| Brake system | Dual Line braking system |
| Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
| Valve | WABCO/KANGJIAN valve |
| Tool box | 1set standard tool box( waterproof type) |
| Spare tire carrier | 1 pieces( Patent type) |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |
