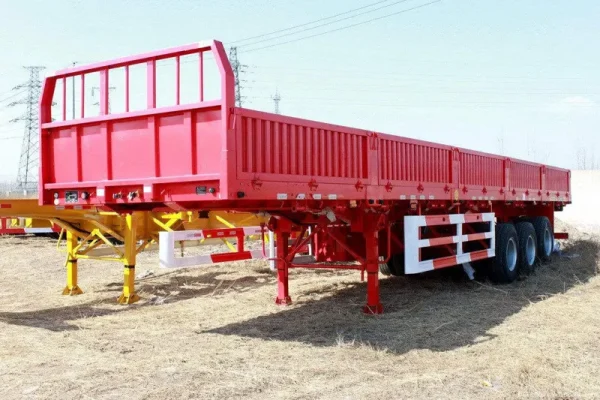

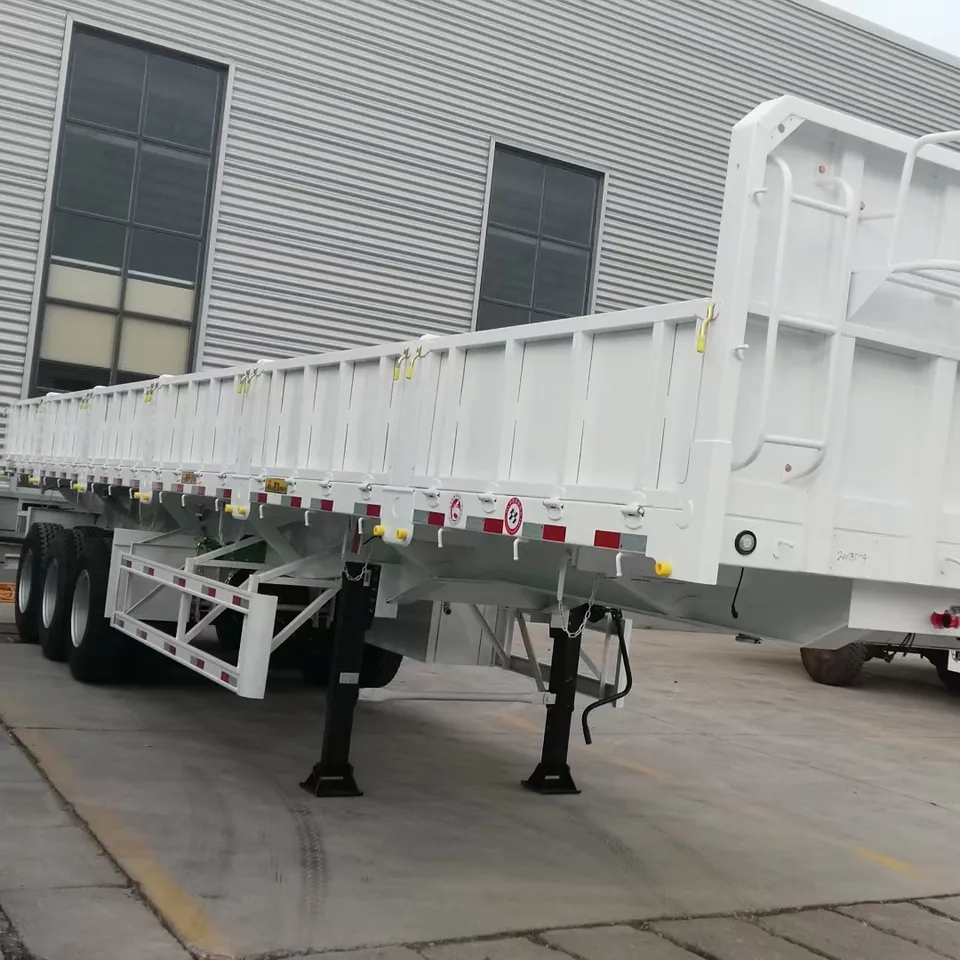

Our 50 Ton Fence Cargo Transport Semi Trailer is engineered for strength and durability, capable of withstanding the toughest transport conditions.
- Constructed with high-quality materials and reinforced components, this semi trailer is built to handle heavy loads and endure frequent use, ensuring lasting performance.
- The heavy-duty fence panels are designed to withstand impact and resist damage, offering a secure containment area for your cargo.
- Equipped with a reliable braking system and robust suspension, this trailer provides safe and controlled handling, ensuring a stable and smooth journey.
| Type: | 3 axles cargo semi trailer | |
| Dimensions: | Outside dimension | L12500*W2500*H2900 mm (cargo box height 600mm) (The final dimensions depend on the final design drawings) |
| Frame: | Design/welding technology | Heavy duty and extra durability designed; |
| Main beam | main beam 500mm, Top Flange thickness 14mm, Bottom Flange thickness 16mm, Middle Flange thickness 6mm; Side beam 16# channel steel, floor 2.3m. cargo box vertical corrugated plate 600mm height, each side have 12pcs rope euphroe. |
|
| OEM parts: | Axle | 3*13 tons capacity, FUWA brand. |
| Traction Pin | JOST (50#) traction pin, assembled. | |
| Suspension | Mechanical steel suspension | |
| Steel Spring | 10pcs leaf spring, thickness 13mm, 6 pairs. | |
| Landing legs | 28T | |
| Tire specs | 13pcs Triangle vacuum tyre 12R22.5 | |
| Rim | 13pcs 9.00-22.5 | |
| Number of wheel | 13 pcs, include 1 spare tyre | |
| Brake system | 4 double air chambers, 2 single air chamber. | |
| Electrical: | LED light | |
| Tool kit | standard | |
| Others: | 4 sets locks, can transport 20ft container. | |
